BT609

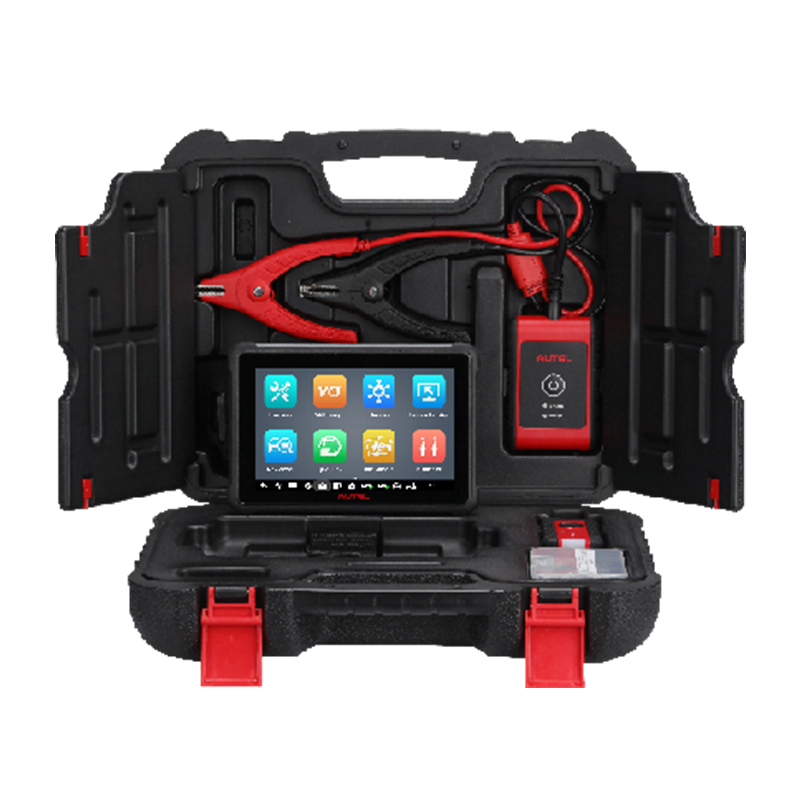

The MaxiBAS BT609 wireless battery and diagnostics system applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The 7-inch Android touchscreen tablet can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT609’s features include AutoVIN to immediately identify vehicle and battery information and to display graphic instructions for battery positioning and testing. Features service menu. Read/Clear codes on all available vehicle systems and perform common maintenance services. Print or share customized reports via Wi-Fi.
| Item | Description |
| Operating System | Android 9.0 |
| Memory | 2GB RAM & 64GB On-board Memory |
| Display | 7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen |
| Connectivity | l Wi-Fi (IEEE 802.11 a/b/g/n/ac 1×1)
l BT 5.0+EDR+BLE l USB 2.0 (1 USB HOST + 1 USB OTG) l Micro SD Card (Support up to 128GB) |
| Camera | 8 Megapixel |
| Sensor | Ambient Light Sensor (ALS) |
| Audio
Input/Output |
l Microphone
l Loudspeaker |
| Power and Battery | l 5800 mAh 3.85 V lithium-polymer battery
l Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 5 V / 2 A Adapter |
| Operating Temp. | 0 to 50° C (32 to 122° F) |
| Storage Temp. | -10 to 60° C (14 to 140° F) |
| Dimensions (WxHxD) | 197 mm (7.75″) x 135 mm (5.31″) x 14 mm (0.55″) |
| Weight | 445 g (0.98 lb.) |
